ATmega16

The ATmega ATmega16 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega16 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Pinout:

Pinout of ATmega16

1	PB0(XCK/T0)	Pin 0 of PORTB	T0( Timer0 External Counter Input) XCK ( USART External Clock I/O)
2	PB1(T1)	Pin 1 of PORTB	T1(Timer1 External Counter Input)
3	PB2(INT2/AIN0)	Pin 2 of PORTB	AIN0(Internal Analog Comparator Positive Input) INT2( External Interrupt 2 Input)
4	PB3(OC0/AIN1)	Pin 3 of PORTB	AIN1(Internal Analog Comparator Negative Input) OC0 (Timer0 Output Compare Match Output) or PWM output
5	PB4(SS )	Pin 4 of PORTB	SS (SPI Slave Select Input). This pin is low when controller acts as slave. [Serial Peripheral Interface (SPI) for programming]
6	PB5(MOSI)	Pin 5 of PORTB	MOSI (Master Output Slave Input). When controller acts as slave, the data is received by this pin. [Serial Peripheral Interface (SPI) for programming]
7	PB6(MISO)	Pin 6 of PORTB	MISO (Master Input Slave Output). When controller acts as slave, the data is sent to master through this pin. [Serial Peripheral Interface (SPI) for programming]
8	PB7(SCK)	Pin 7 of PORTB	SCK (SPI Bus Serial Clock). This is the clock shared between this controller and other system for accurate data transfer. [Serial Peripheral Interface (SPI) for programming]
9	RESET	Reset Pin (Active Low Reset)
10	VCC	Connected to +5V
11	GND	Connected to GROUND
12	XTAL2	Connected to Crystal Oscillator
13	XTAL1	Connected to Crystal Oscillator
14	PD0(RXD)	Pin 0 of PORTD	RXD (USART Input Pin) [USART Serial Communication Interface can be used for programming]
15	PD1(TXD)	Pin 1 of PORTD	TXD (USART Output Pin) [USART Serial Communication Interface can be used for programming]
16	PD2(INT0)	Pin 2 of PORTD	External Interrupt INT0
17	PD3(INT1)	Pin 3 of PORTD	External Interrupt INT1
18	PD4(OC1B)	Pin 4 of PORTD	OC1B (Timer Output Compare Match Output) or PWM output
19	PD5(OC1A)	Pin 5 of PORTD	OC1A (Timer Output Compare Match Output) or PWM output
20	PD6(ICP)	Pin 6 of PORTD	Timer/Counter1 Input Capture Pin
21	PD7 (OC2)	Pin 7 of PORTD	Timer/Counter2 Output Compare Match Output
22	PC0 (SCL)	Pin 0 of PORTC	TWI Interface
23	PC1 (SDA)	Pin 1 of PORTC	TWI Interface
24	PC2 (TCK)	Pin 2 of PORTC	JTAG Interface
25	PC3 (TMS)	Pin 3 of PORTC	JTAG Interface
26	PC4 (TDO)	Pin 4 of PORTC	JTAG Interface
27	PC5 (TDI)	Pin 5 of PORTC	JTAG Interface
28	PC6 (TOSC1)	Pin 6 of PORTC	Timer Oscillator Pin 1
29	PC7 (TOSC2)	Pin 7 of PORTC	Timer Oscillator Pin 2
30	AVcc	Vcc for Internal ADC Converter
31	GND	GROUND
32	AREF	Analog Reference Pin for ADC
33	PA7 (ADC7)	Pin 7 of PORTA	ADC (Analog to Digital Converter) Channel 7
34	PA6 (ADC6)	Pin 6 of PORTA	ADC (Analog to Digital Converter) Channel 6
35	PA5 (ADC5)	Pin 5 of PORTA	ADC (Analog to Digital Converter) Channel 5
36	PA4 (ADC4)	Pin 4 of PORTA	ADC (Analog to Digital Converter) Channel 4
37	PA3 (ADC3)	Pin 3 of PORTA	ADC (Analog to Digital Converter) Channel 3
38	PA2 (ADC2)	Pin 2 of PORTA	ADC (Analog to Digital Converter) Channel 2
39	PA1 (ADC1)	Pin 1 of PORTA	ADC (Analog to Digital Converter) Channel 1
40	PA0 (ADC0)	Pin 0 of PORTA	ADC (Analog to Digital Converter) Channel 0

Applications:

Hobbyists applications
Engineers design
Temperature control systems
Analog signal measuring and manipulations.
Embedded systems like coffee machine, vending machine.
Motor control systems.
Digital signal processing.
Peripheral Interface system.

Electronic Components – Buy Resistors, ICs, LEDs & More Online

ATmega16

Male to Male Jumper Wires (20cm) (20pcs)

40x1 Male Berg Strip (90 Degree)

BC548 NPN Transistor (Pack of 5)

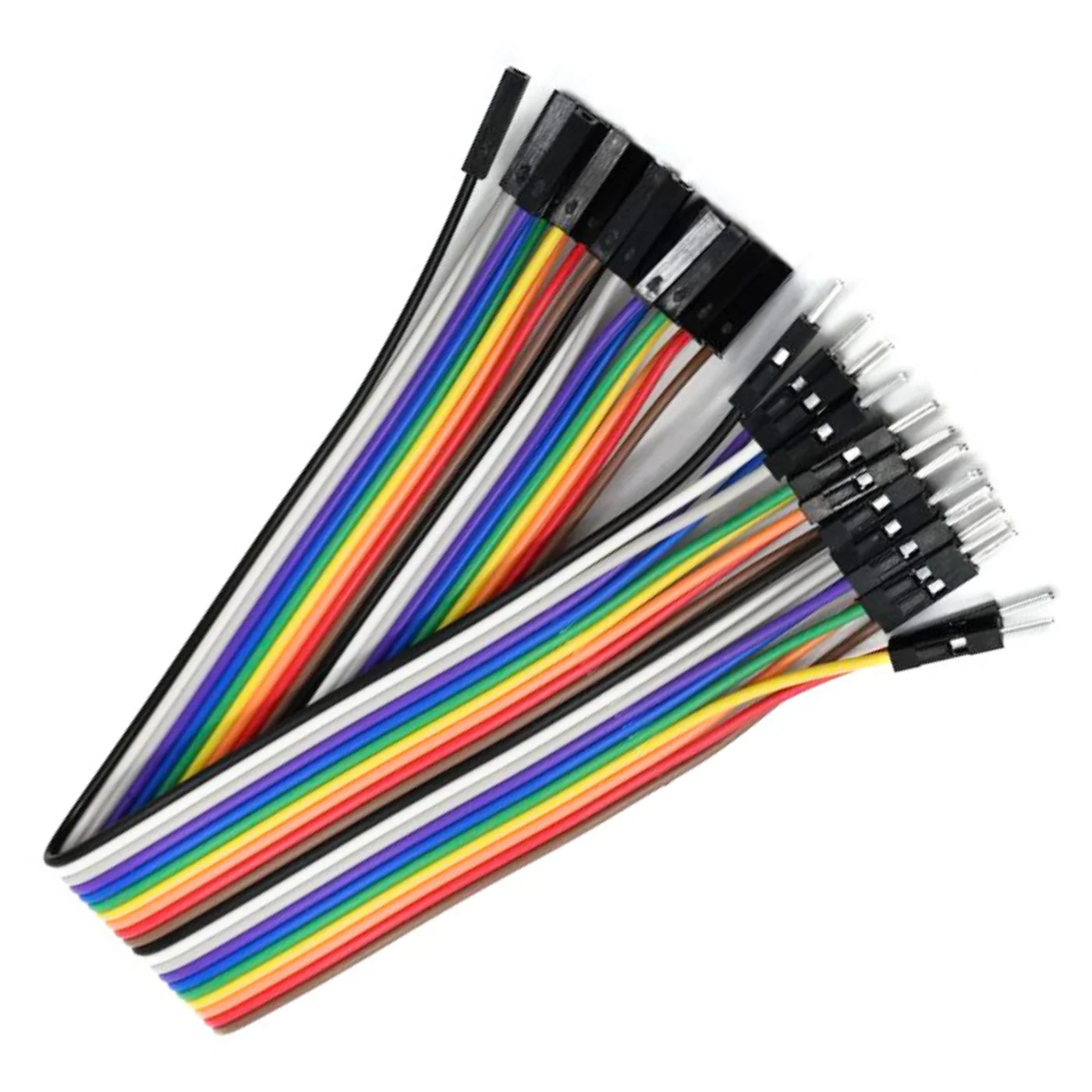

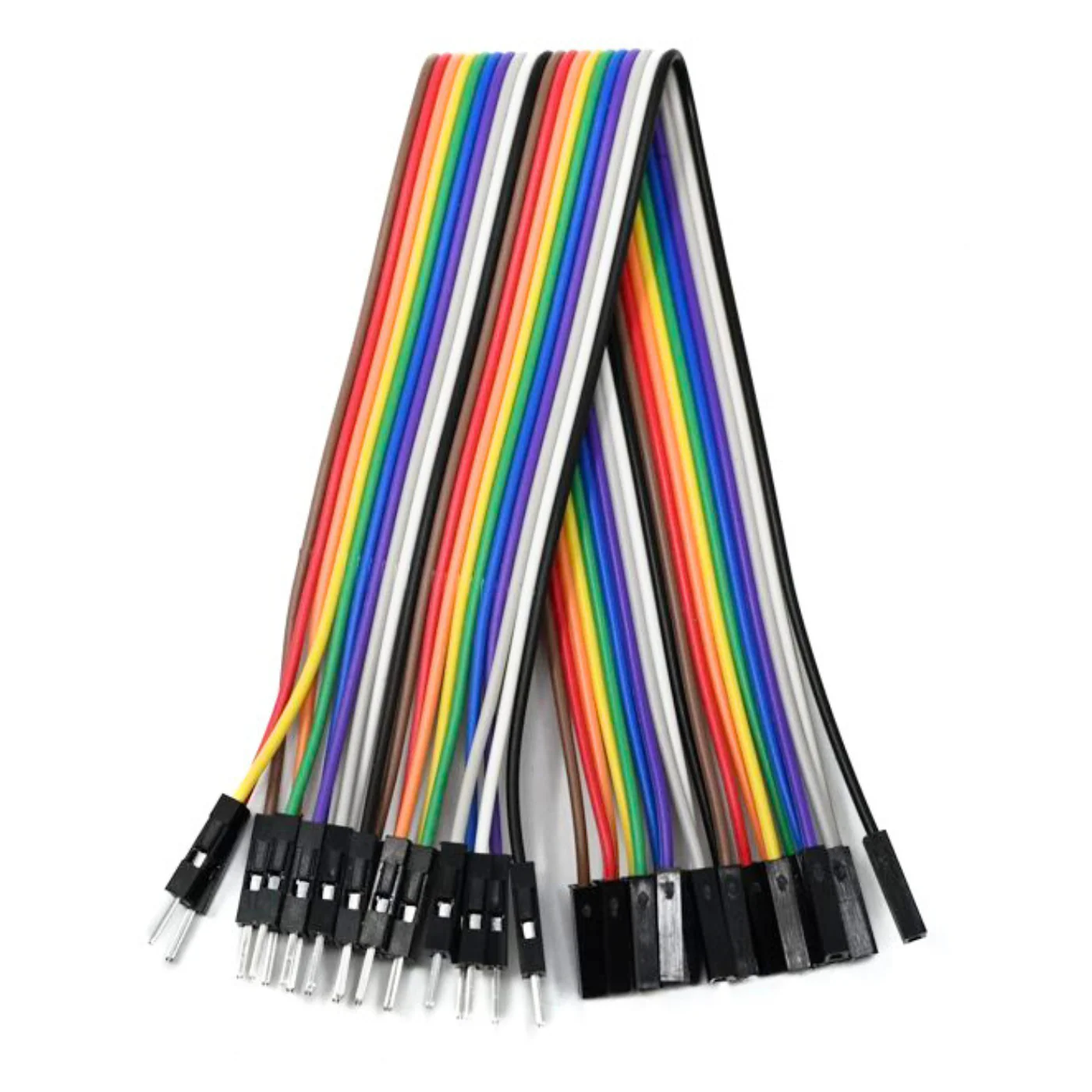

Male to Female Jumper Wires (20cm) (20pcs)

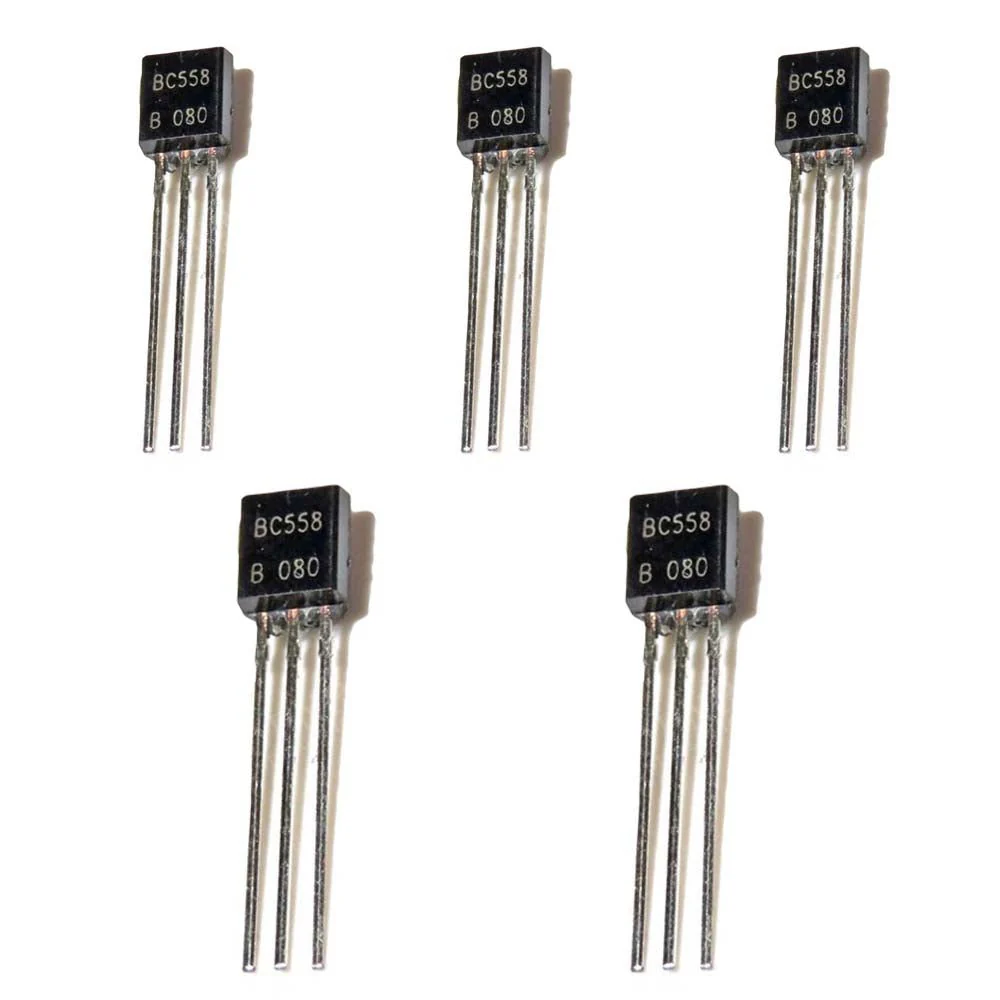

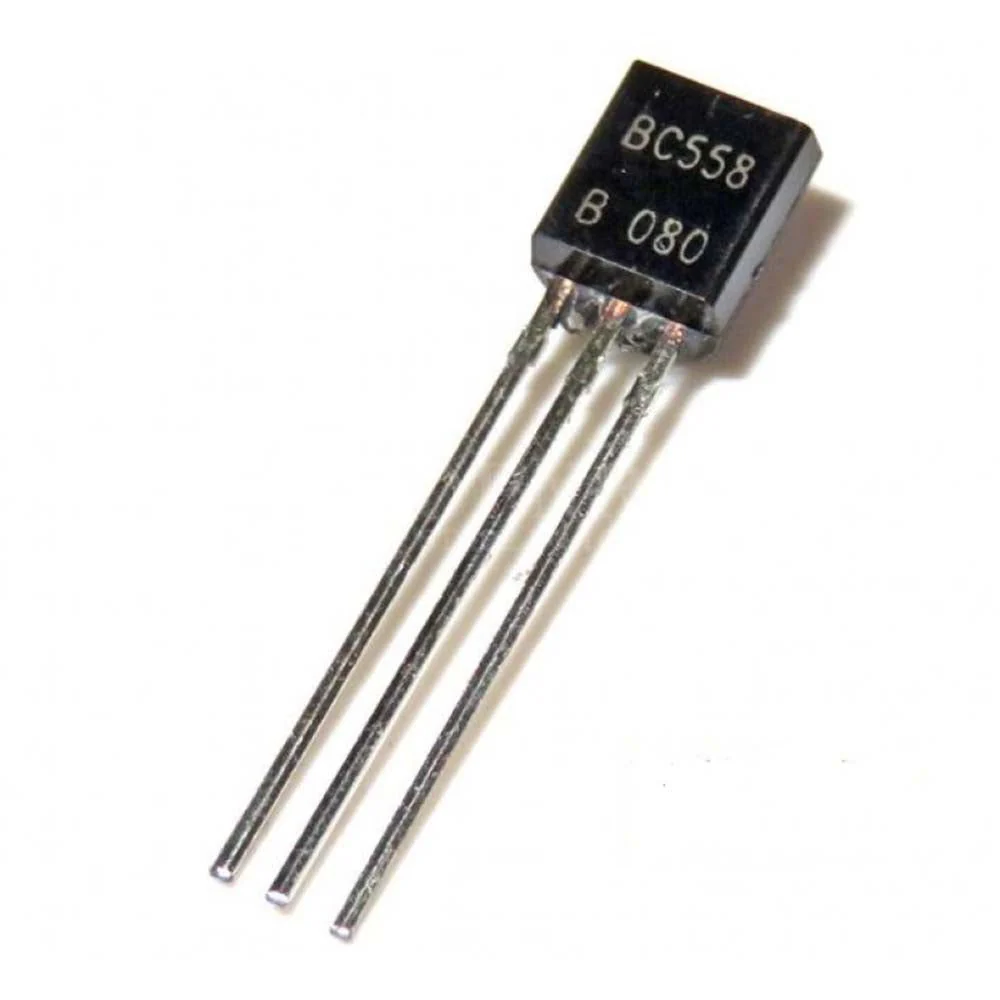

BC558 Transistor (Pack of 5)

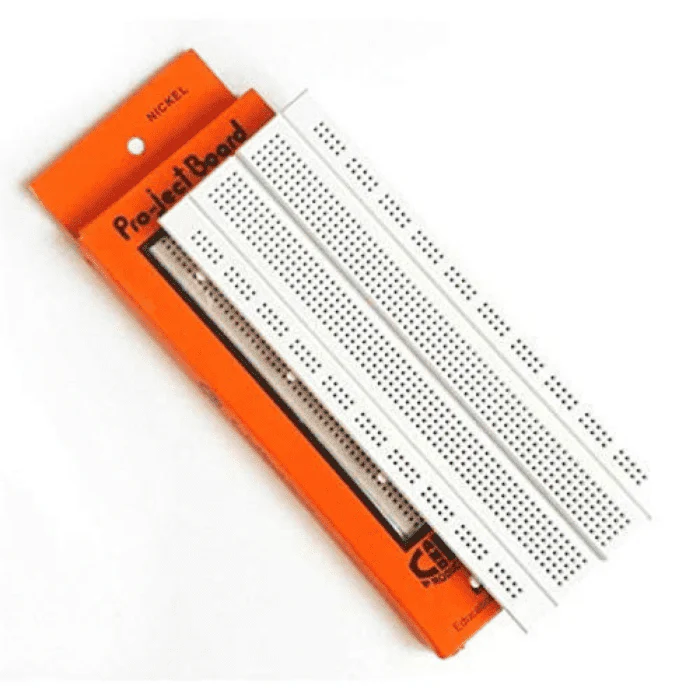

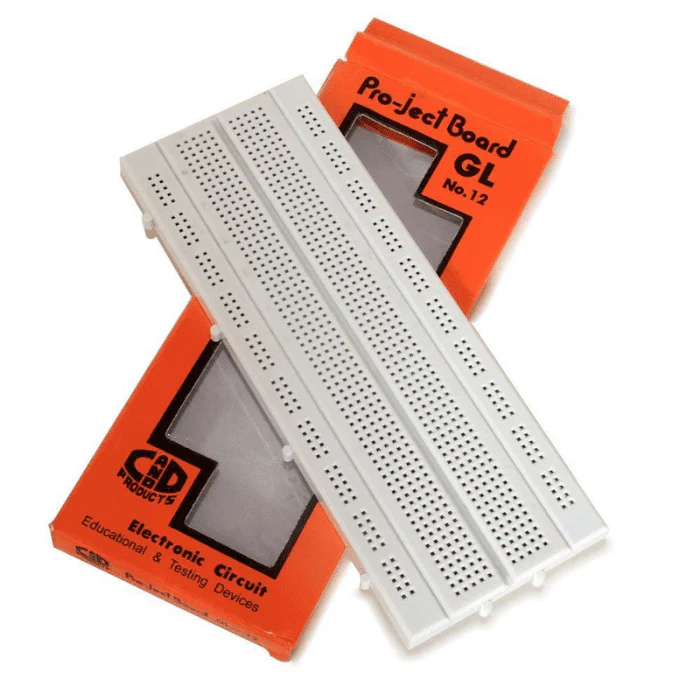

GL12 840 Points Solderless Breadboard

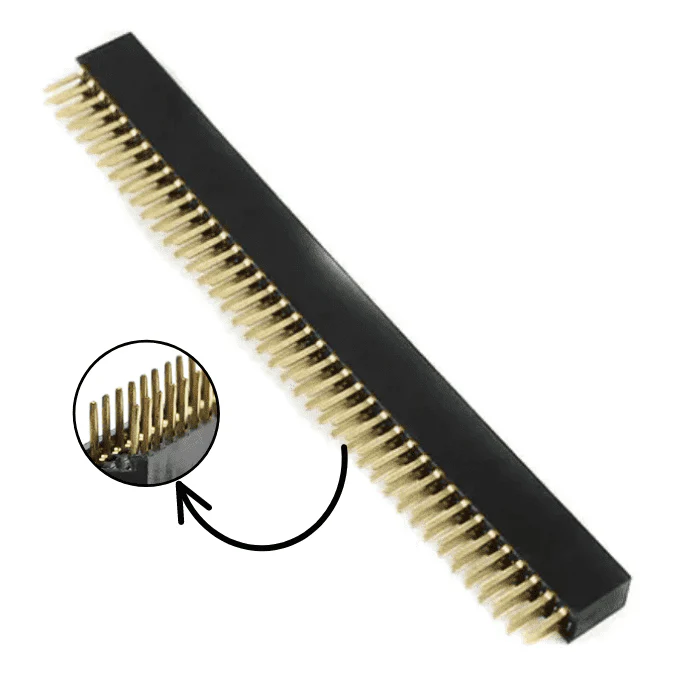

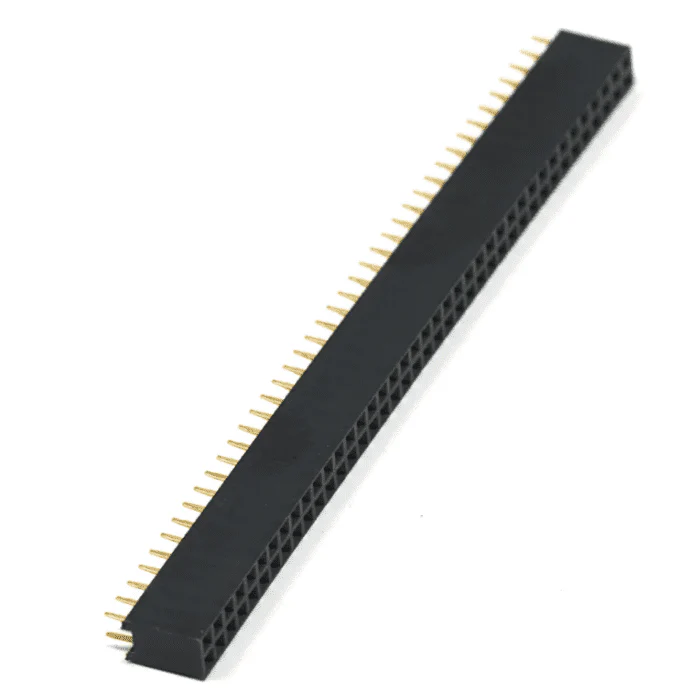

40x2 Female Berg Strip

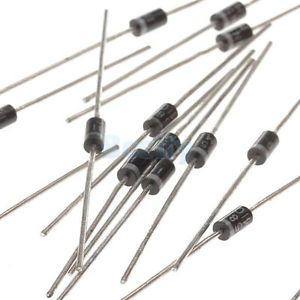

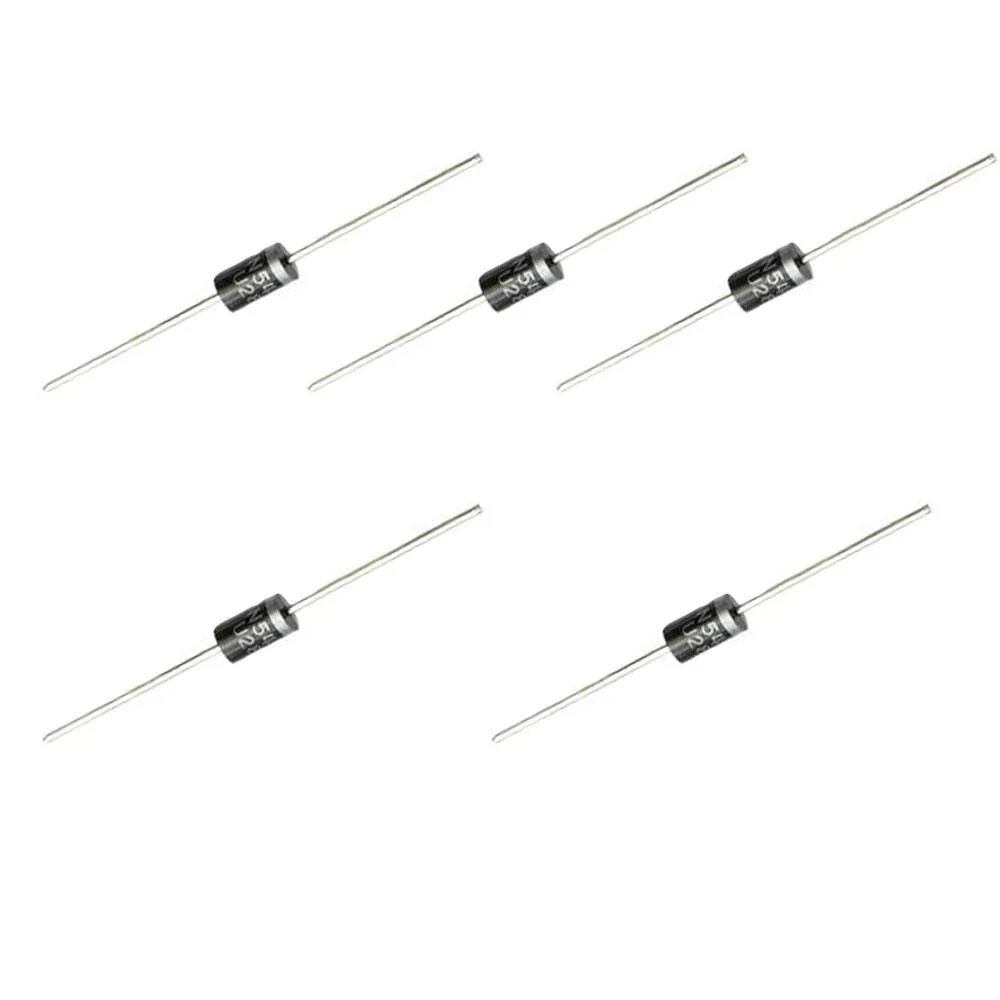

1N5819 Diode (Pack of 5)

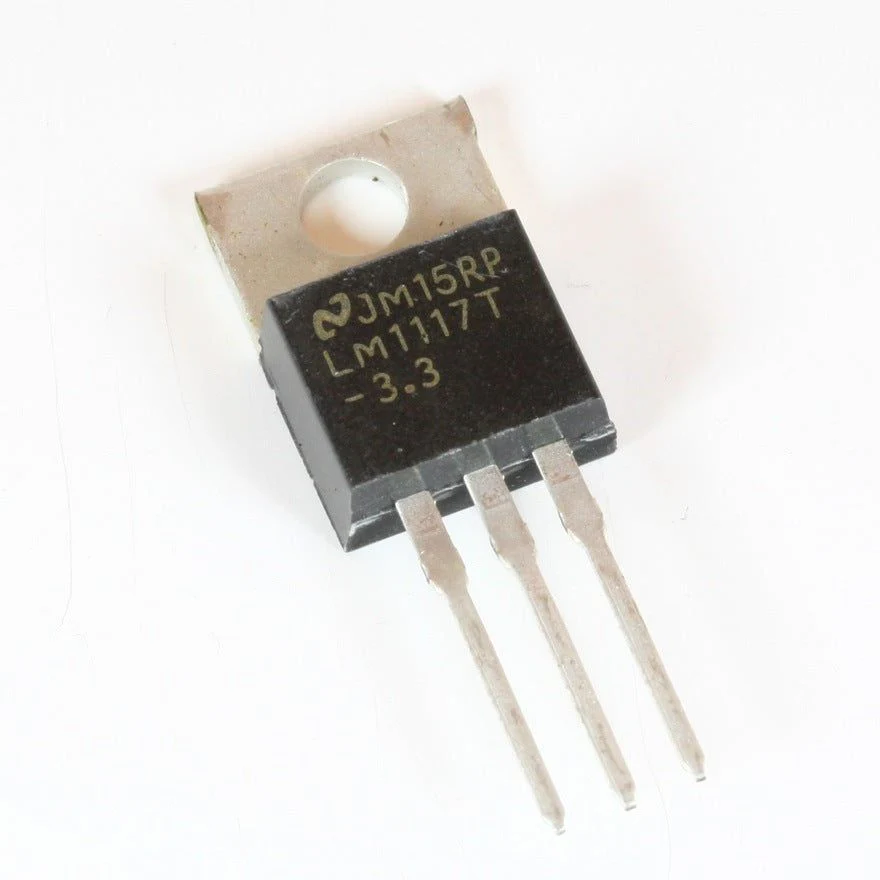

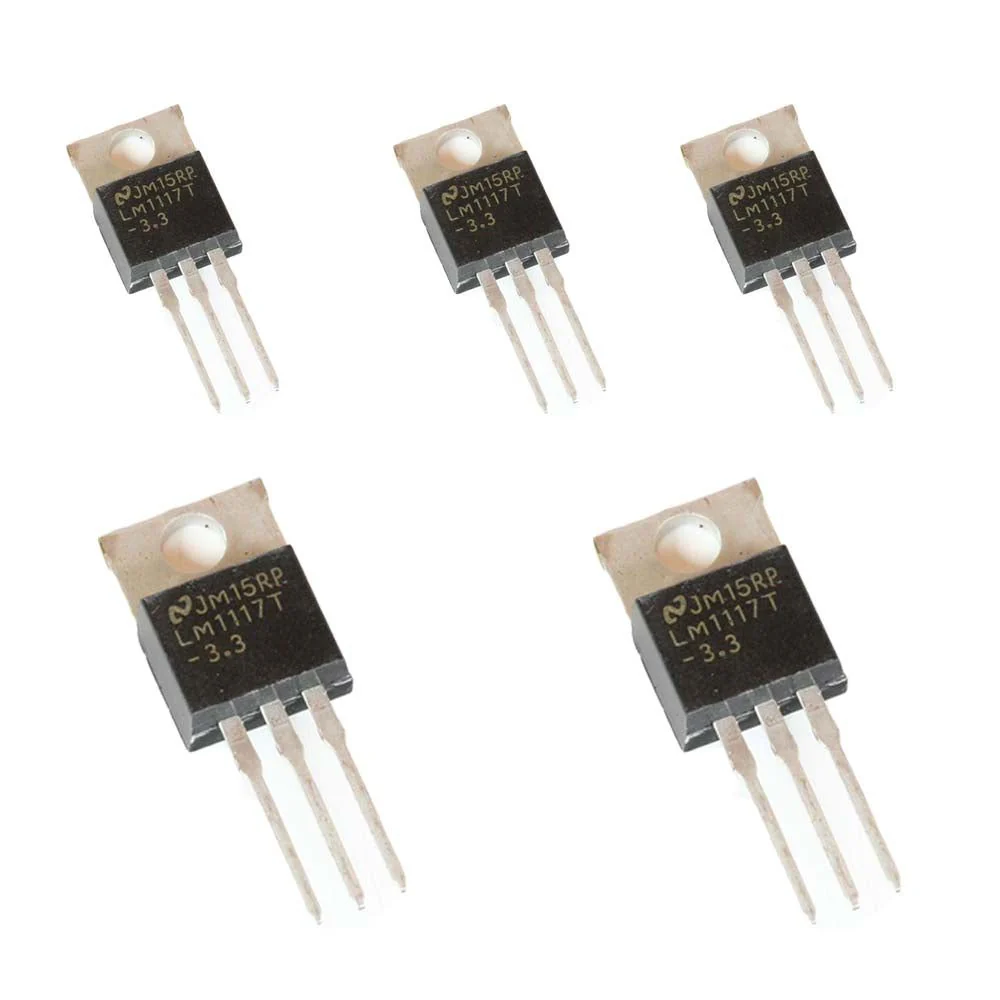

LM1117 IC Transistor - (Pack of 5)

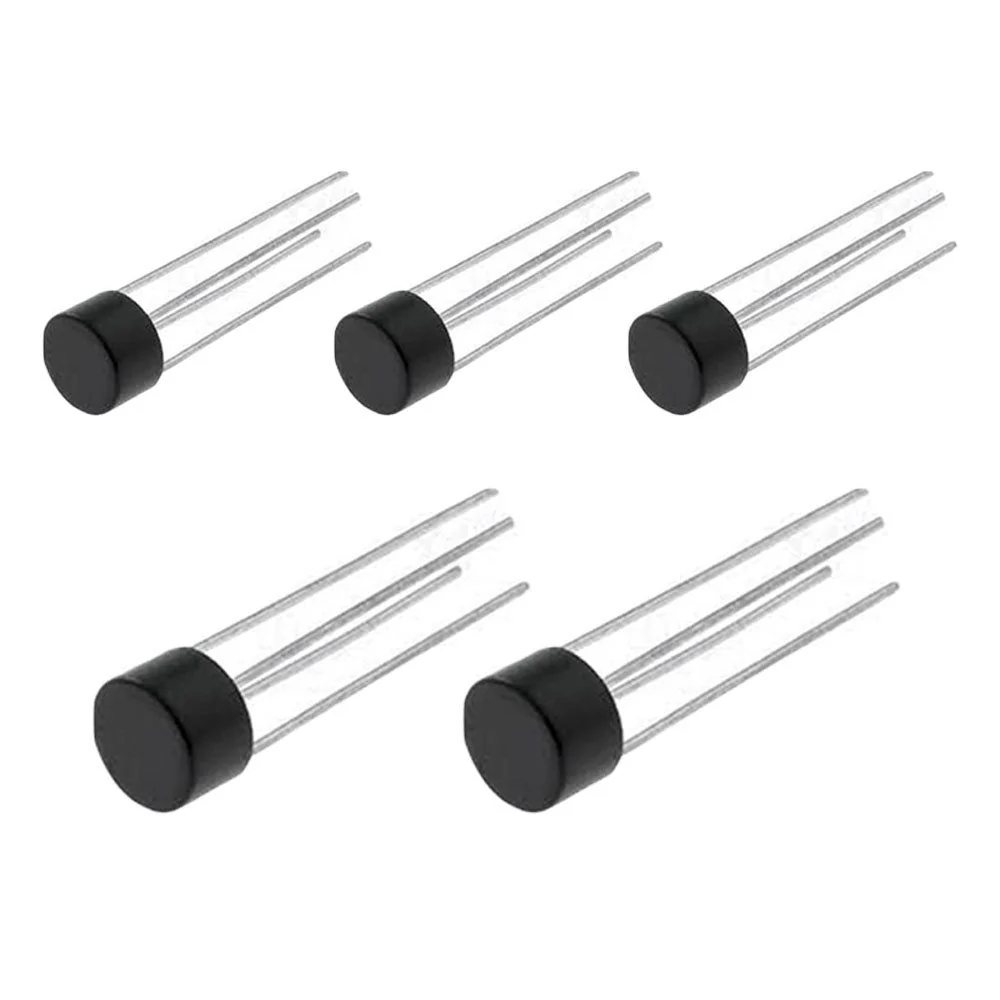

Bridge Rectifier (Pack of 5)

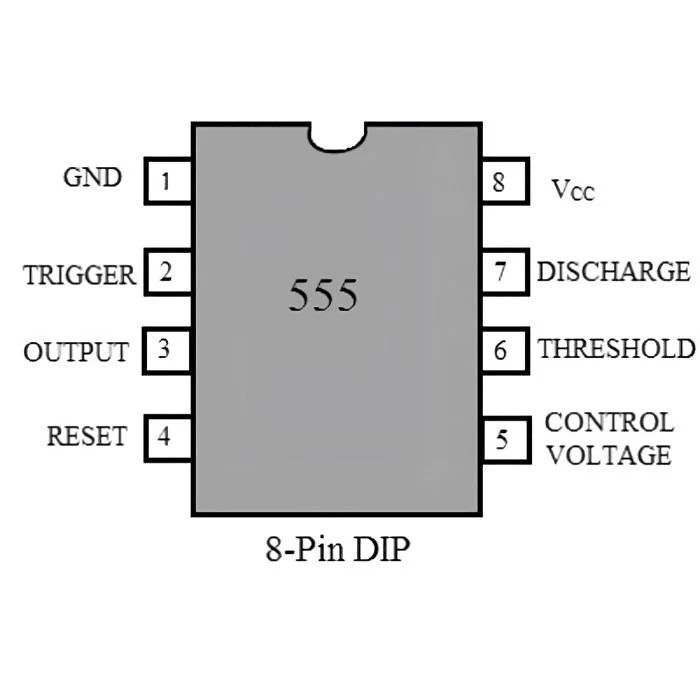

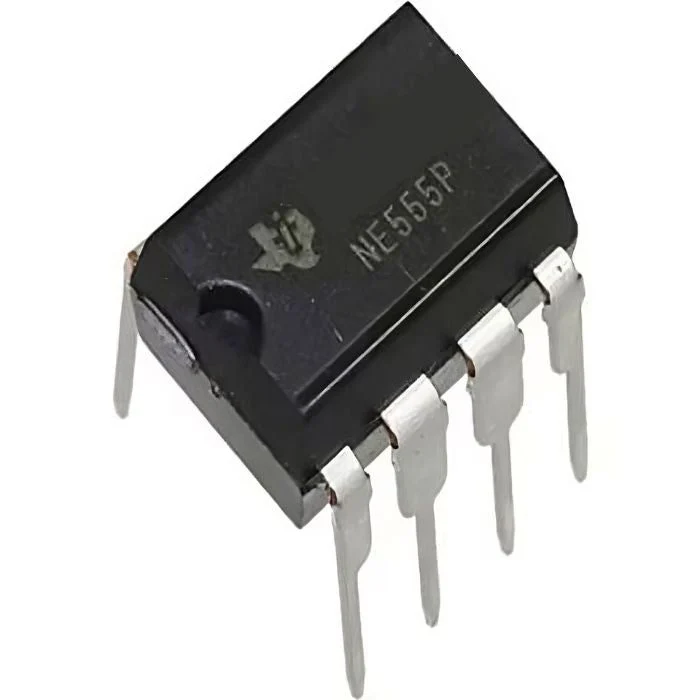

555 Timer IC
