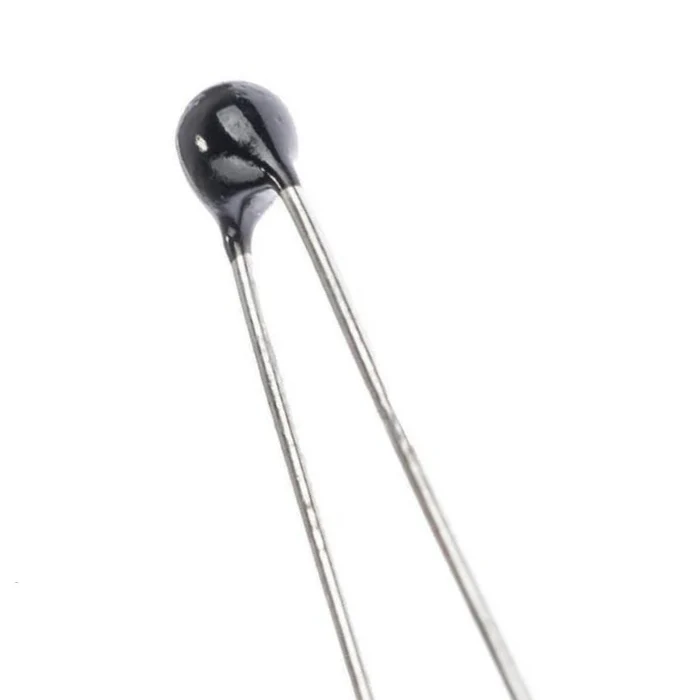

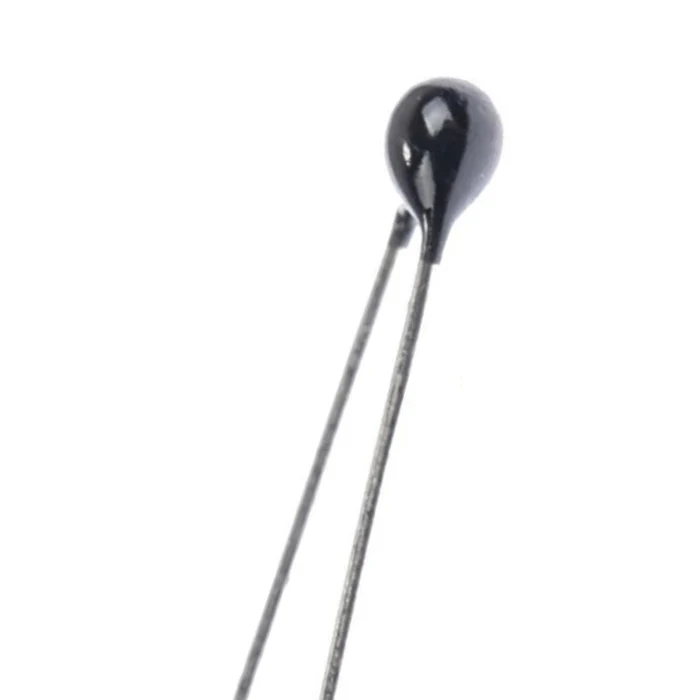

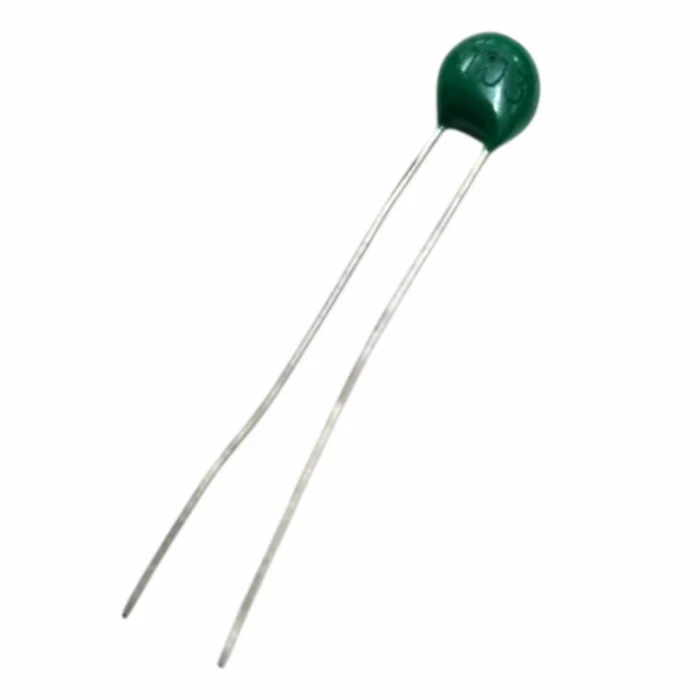

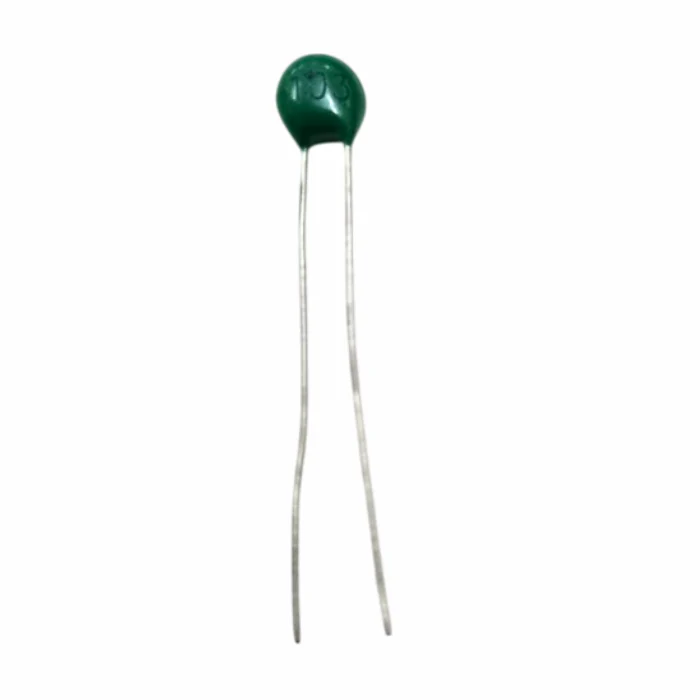

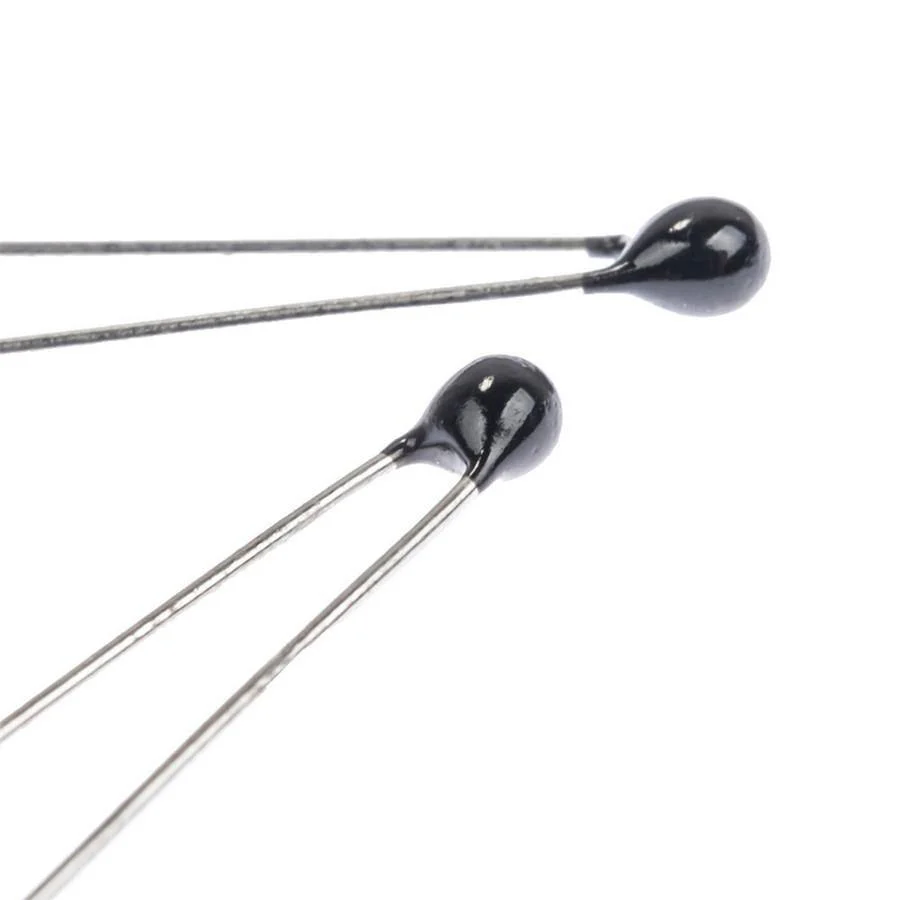

10K Temperature Sensor (Thermistor) - Color may Vary
10K Temperature Sensor (Thermistor)
A 10K temperature sensor (also known as a thermistor) is a type of resistor that changes its resistance value in response to changes in temperature. The "10K" refers to its resistance value at a temperature of 25Ā°C, which is 10,000 ohms. Thermistors are commonly used in temperature sensing and control applications because of their high sensitivity and fast response time. They are often preferred over other temperature sensors such as thermocouples and RTDs because they are smaller, cheaper, and easier to use. There are two main types of thermistors: negative temperature coefficient (NTC) and positive temperature coefficient (PTC). NTC thermistors have a resistance that decreases as the temperature increases, while PTC thermistors have a resistance that increases as the temperature increases.
Thermistors are inexpensive, easily obtainable temperature sensors.Ā They are easy to use and adaptable.Ā Circuits with thermistors can have reasonable output voltages - not the millivolt outputs thermocouples have.Ā Because of these qualities, thermistors are widely used for simple temperature measurements.Ā They're not used for high temperatures, but in the temperature ranges where they work, they are widely used.
Applications:
- Temperature control in HVAC systems
- Medical equipment
- Industrial processes
- Automotive systems
- Environmental monitoring
- Consumer electronics.
Also checkĀ 10K Thermistor Temperature Sensor Module(3 Pin)
Also checkĀ 10K Thermistor Temperature Sensor Module(4 Pin).Ā The module is small and low-cost. It can be used to detect the temperature of the surrounding environment.
Original: $0.11
-73%$0.11
$0.03More Images
10K Temperature Sensor (Thermistor) - Color may Vary
10K Temperature Sensor (Thermistor)
A 10K temperature sensor (also known as a thermistor) is a type of resistor that changes its resistance value in response to changes in temperature. The "10K" refers to its resistance value at a temperature of 25Ā°C, which is 10,000 ohms. Thermistors are commonly used in temperature sensing and control applications because of their high sensitivity and fast response time. They are often preferred over other temperature sensors such as thermocouples and RTDs because they are smaller, cheaper, and easier to use. There are two main types of thermistors: negative temperature coefficient (NTC) and positive temperature coefficient (PTC). NTC thermistors have a resistance that decreases as the temperature increases, while PTC thermistors have a resistance that increases as the temperature increases.
Thermistors are inexpensive, easily obtainable temperature sensors.Ā They are easy to use and adaptable.Ā Circuits with thermistors can have reasonable output voltages - not the millivolt outputs thermocouples have.Ā Because of these qualities, thermistors are widely used for simple temperature measurements.Ā They're not used for high temperatures, but in the temperature ranges where they work, they are widely used.
Applications:
- Temperature control in HVAC systems
- Medical equipment
- Industrial processes
- Automotive systems
- Environmental monitoring
- Consumer electronics.
Also checkĀ 10K Thermistor Temperature Sensor Module(3 Pin)
Also checkĀ 10K Thermistor Temperature Sensor Module(4 Pin).Ā The module is small and low-cost. It can be used to detect the temperature of the surrounding environment.
