SmartElex LSM6DSO 6 DOF Accelerometer and Gyroscope Sensor Breakout
SmartElex LSM6DSO 6 DOF Accelerometer and Gyroscope Sensor Breakout

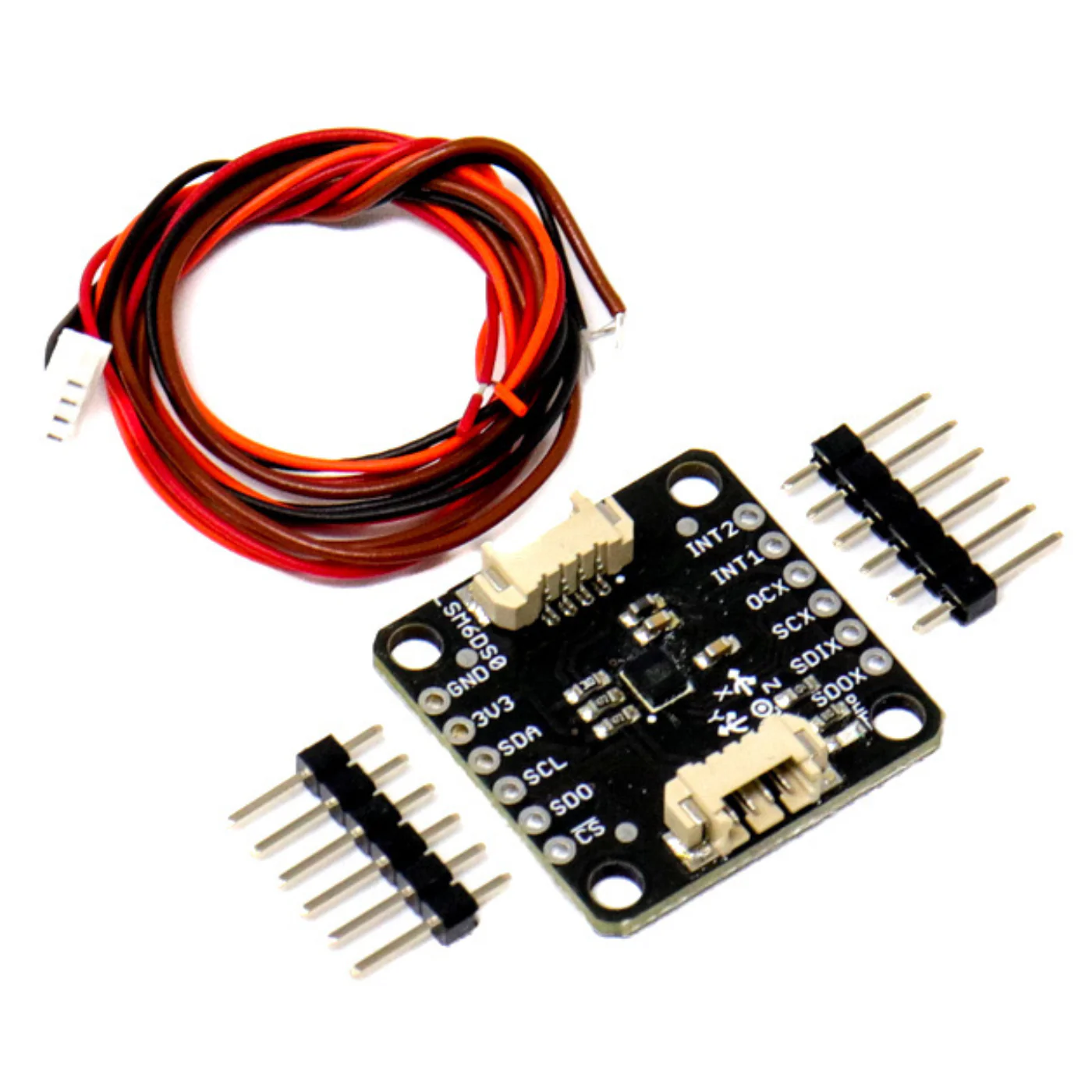

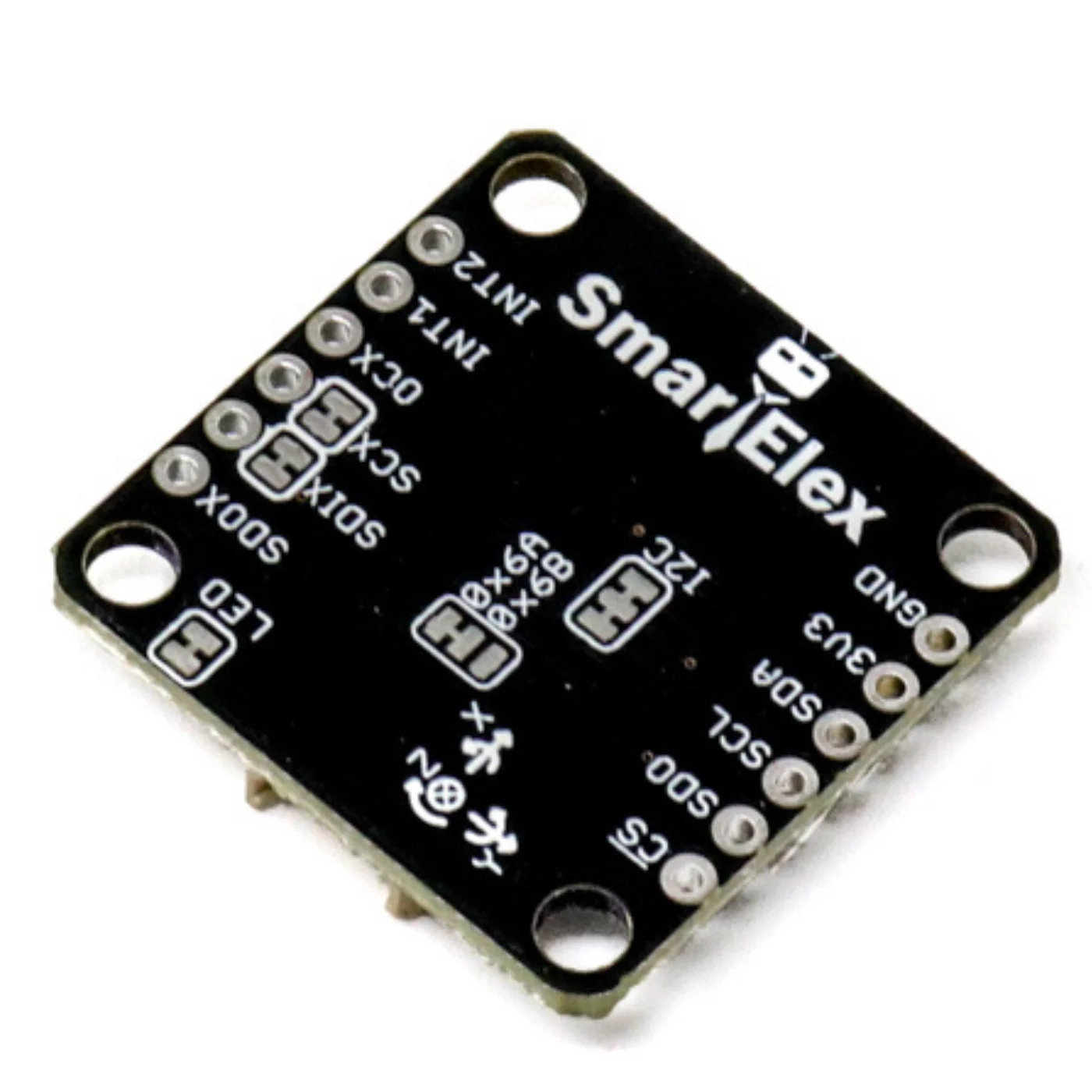

The SmartElex LSM6DSO 6 DOF Breakout Board is a powerful accelerometer and gyroscope sensor module designed for precise motion and orientation detection.
Built around the advanced LSM6DSO chip from STMicroelectronics, it delivers high-speed data rates up to 6.66kHz and features a massive 9kB FIFO buffer for efficient data storage.
This breakout board can detect motion, tilt, shocks, taps, and even monitor temperature, making it suitable for robotics, wearables, and IoT applications.
With easy connectivity via I2C or SPI, the LSM6DSO Breakout Board ensures flexibility for various embedded systems. Please note that it operates on 3.3V logic levels, so a voltage level shifter is recommended for 5V platforms.
Features:
- Model: LSM6DSO (3D accelerometer and 3D gyroscope) with I2C/SPI serial interface.
- The accelerometer measuring range is ±2/±4/±8/±16 g full scale.
- The gyro measurement range is ±125/±250/±500/±1000/±2000 dps full scale.
- Embedded temperature sensor with 16-bit resolution
- Operating voltage range: 1.71V to 3.6V; typically, 3.3V.
